Skutt Kilns PK Power
Skutt Kilns
PK Power
Why You May Want to Upgrade Your Kiln With PK Power
- Maximum Cone 10 Power on Large Kilns Which Will Never Struggle to Get to Temperature
- Mercury Relays Which Won’t Fail
- Ultra Heavy Duty Wiring and Connectors to Handle the Power
- Micro Balanced Elements for Even Firing Top to Bottom
The PK stands for “Production Kiln” and that is exactly what these things are designed for. We originally designed them to provide a Cone 10 option for our 1227 kilns but soon found out that the Ceramic Production companies were buying them like hot cakes. Even if they were low firing, these companies appreciated the low maintenance, fast turn around times, and minimal downtime associated with these units.
The Skutt Kiln PK series is an electric kiln line designed specifically for volume production and fast turnaround of high mass loads. It has the power and industrial components to go straight to Cone 10 with a full load of tile or stoneware without struggling to reach the final temperature. The standard KilnMaster controller gives you the options of Cone Firing, or selecting your own 8-segment Ramp/Hold firing programs. The combination of direct wiring, heavy duty elements, connectors and relays, plus traditional Skutt stainless steel and firebrick construction results in a kiln that will last for years of constant use. Among the most powerful on the market today, the line was designed at the request of Skutt customers.
Standard Features
The Skutt KM-1227PK and KM-1231PK kilns include the KilnMaster controller built in. Other standard features include:
2 year limited warranty, elements excluded
Encapsulated Type K thermocouple
Mercury Relays
Industrial gauge wiring
Compression connectors on feeder wires
Larger, swing away, air cooled switch box
Multi-sided design
Stainless steel jacket
Sectionalized construction
2 lift handles on each section
Sealed, dust-free lid with full-floating hinge

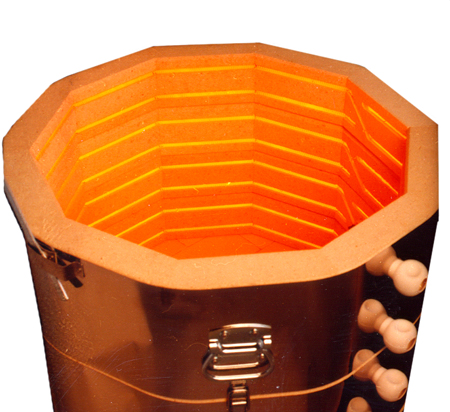

Three types of exposed, pinned elements for optimum balance
Reversible top and bottom slabs
Stand included
Peep plugs
KilnMaster Specifications
Delay Firing Start: up to 99 hours and 99 minutes
Cone Fire Mode: entry by cone number, 3 firing speeds, Cone 022 to Cone 10.
Ramp/Hold Mode: Entry by temperature, create programs from 1-8 segments. Each segment can specify a rate of heating or cooling to a specified temperature with an optional hold, to a maximum temperature of 2350° F.
Memory holds up to 6 firing programs.
Safety features: Power Failure Detection, Thermocouple Failure Detection, Microprocessor Fault Detection.
Electronic Cone Table: Converts cone numbers to temperature.
Digital readout: Fahrenheit or Centigrade.
Program Review: Reviewing program and current segment during firing.
Temperature Alarm: Adjustable to desired temperature.
Control Panel: Sealed touchpad, washable.
Thermocouple: Encapsulated Type K.
Designed and manufactured in the USA.
KM-1227PK and KM-1231PK Electrical Requirements
UL listing
KM-1231PK-single phase
Chamber: 28 1/8" opening, 31" deep, 11.57 cu. ft.,
240V: 72 Amps, 17300 Watts
Copper Wire: 2
Fuse/Breaker: 90
208V: 80 Amps, 16640 Watts
Copper Wire: 2
Fuse/Breaker: 100
Cone 10, 2350°
KM-1231PK-3ph
Chamber: 28 1/8" opening, 31" deep, 11.57 cu. ft.
240V: 44.5 Amps, 17300 Watts
Copper Wire: 6
Fuse/Breaker: 60
208V: 4 51.5 Amps, 17300 Watts
Copper Wire: 6
Fuse/Breaker: 60
Cone 10, 2350°
KM-1227PK-single phase
Chamber: 28 1/8" opening, 27" deep, 9.92 cu. ft.
240V: 60 Amps, 14300 Watts
Copper Wire: 4
Fuse/Breaker: 80
208V: 69 Amps, 14300 Watts
Copper Wire: 2
Fuse/Breaker: 90
Cone 10, 2350°
KM-1227PK-3 phase
Chamber: 28 1/8" opening, 27" deep, 9.92 cu. ft.
240V: 40 Amps, 14300 Watts
Copper Wire: 6
Fuse/Breaker: 50
208V: 46.7 Amps, 14300 Watts
Copper Wire: 6
Fuse/Breaker: 60
Cone 10, 2350°
