North Star Extruders

North Star Extruders Simple, Safe, Inexpensive

North Star Extruders
Simple, Safe, Inexpensive

North Star 950 Stainless Extruder Package -
Retail - $774.99
Your price - $680.00

North Star 910 Stainless Extruder -
Retail - $659.99
Your price - $580.00

North Star 960 ULTIMATE Stainless Extruder -
Retail - $1244.99
Your price - $1120.00

The 910 and 950 are the simplest, safest extruders available for small to medium extrusions - the kind most of us do most of the time. They have proved their utility and durability year after year. North Star extruders do not look like or work like any others. They are designed to be simple, safe and inexpensive. The Stainless model features a 4 inch square steel barrel tapered at the top for easy loading. It comes with a long extension handle to give extra leverage for small extrusions or stiff clay. The stainless extruder and the Accessory Die Kit are packaged together at a money-saving price as the "Stainless Extruder Package." The Accessory Die Kit may also be purchased separately. The 960 Ultimate includes 23 EXTRA dies.

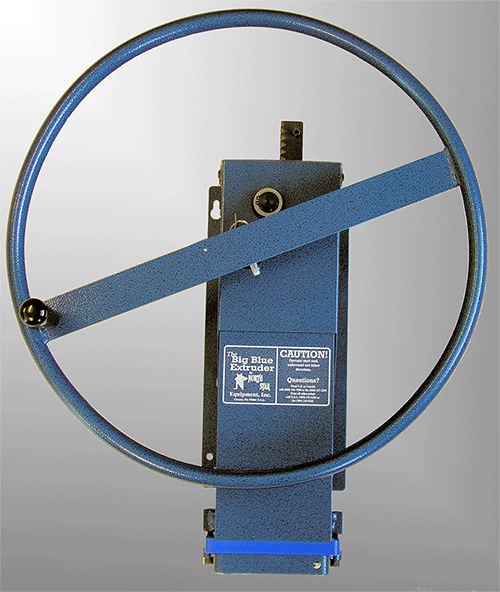

North Star 970 Big Blue Extruder
Retail: $1627.99
SALE price: $1420.00 plus shipping -
ships FED EX Ground.
     The North Star Big Blue Extruder does not look like or work like any others. It is designed to be simple and safe, yet powerful. This model features a 6 x 6 x 12 inch aluminum barrel that holds a full 25 pound pug of clay and can produce extrusions up to 4-1/2 x 4-1/2 inches, without an expansion box.
Other notable features include:

  • With this extruder, there are no heavy bars or levers to injure head or feet, no hydraulic pumps or air compressors with their inherent hazards. Instead, it is entirely hand driven. Turning the large handle drives a compound rack-and-pinion gear box which dramatically reduces the force needed to make an extrusion. No more than thirty pounds of force at the handle is needed to make an average extrusion!
  • The barrel and die simply lift out as a unit (no tools required) so that cleaning, changing dies and loading can be done while you sit or stand comfortably at your work bench.
  • Wall mounted.
  • The Wagon Wheel Handle and compound gear drive make it possible for anyone to make large extrusions without the help of the local moose.
  • The Wagon Wheel Handle is held in place by a quick release pin. It is removed with a pull (again, no tools) so the handle can be quickly set aside whenever it is in the way.
  • Dies furnished with the Big Blue Extruder include: Hollow round, square and hex (all 4-1/2 inch OD with 5/16 inch walls), plus one blank die
  • Solid construction is worry-free and almost no maintenance is required.
  • The barrel is heavy-wall aircraft-alloy aluminum and only UHMW, aluminum and stainless steel can contact the clay. The housing is made of powder-coated steel and stainless steel. All gears and the gearbox are solid steel which has been either powder-coated or plated.
  • Adapter available to use from North Star standard (4 inch) extruders.
    More stock dies will be made available as demand arises, including larger versions of most shapes available for 4 inch extruder.
    · Ships via UPS in two cartons. Weight approximately 10 and 55 pounds.
    · Warranty: One year.

     All prices are subject to change without notice due to manufacturer's price increases and fuel surcharges with shipping companies. We reserve the right to adjust pricing accordingly. Please check with us prior to billing to be sure you have correct pricing.




Price Each: $1,375.00
Minimum Order Quantity: 1
Pack Quantity: 1 Pcs.
SKU: NorthStarExtruders

Ordering: Sales@AmericanCeramics.com
